Gnome::Gtk3::Notebook

Gnome::Gtk3::Notebook

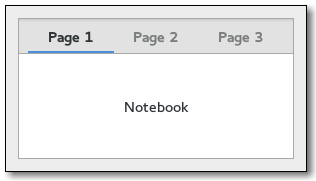

A tabbed notebook container

No caption

Description

The Gnome::Gtk3::Notebook widget is a Gnome::Gtk3::Container whose children are pages that can be switched between using tab labels along one edge.

There are many configuration options for Gnome::Gtk3::Notebook. Among other things, you can choose on which edge the tabs appear (see gtk_notebook_set_tab_pos()), whether, if there are too many tabs to fit the notebook should be made bigger or scrolling arrows added (see gtk_notebook_set_scrollable()), and whether there will be a popup menu allowing the users to switch pages. (see gtk_notebook_popup_enable(), gtk_notebook_popup_disable())

Gnome::Gtk3::Notebook as Gnome::Gtk3::Buildable

The Gnome::Gtk3::Notebook implementation of the Gnome::Gtk3::Buildable interface supports placing children into tabs by specifying “tab” as the “type” attribute of a <child> element. Note that the content of the tab must be created before the tab can be filled. A tab child can be specified without specifying a <child> type attribute.

To add a child widget in the notebooks action area, specify "action-start" or “action-end” as the “type” attribute of the <child> element.

An example of a UI definition fragment with Gnome::Gtk3::Notebook:

<object class="GtkNotebook">
  <child>
    <object class="GtkLabel" id="notebook-content">
      <property name="label">Content</property>
    </object>
  </child>
  <child type="tab">
    <object class="GtkLabel" id="notebook-tab">
      <property name="label">Tab</property>
    </object>
  </child>
</object>

Css Nodes

notebook
├── header.top
│   ├── [<action widget>]
│   ├── tabs
│   │   ├── [arrow]
│   │   ├── tab
│   │   │   ╰── <tab label>
┊   ┊   ┊
│   │   ├── tab[.reorderable-page]
│   │   │   ╰── <tab label>
│   │   ╰── [arrow]
│   ╰── [<action widget>]
│
╰── stack
    ├── <child>
    ┊
    ╰── <child>

Gnome::Gtk3::Notebook has a main CSS node with name notebook, a subnode with name header and below that a subnode with name tabs which contains one subnode per tab with name tab.

If action widgets are present, their CSS nodes are placed next to the tabs node. If the notebook is scrollable, CSS nodes with name arrow are placed as first and last child of the tabs node.

The main node gets the .frame style class when the notebook has a border (see gtk_notebook_set_show_border()).

The header node gets one of the style class .top, .bottom, .left or .right, depending on where the tabs are placed. For reorderable pages, the tab node gets the .reorderable-page class.

A tab node gets the .dnd style class while it is moved with drag-and-drop.

The nodes are always arranged from left-to-right, regardless of text direction.

See Also

Gnome::Gtk3::Container

Synopsis

Declaration

unit class Gnome::Gtk3::Notebook;
also is Gnome::Gtk3::Container;

Uml Diagram

No caption

Inheriting this class

Inheriting is done in a special way in that it needs a call from new() to get the native object created by the class you are inheriting from.

use Gnome::Gtk3::Notebook:api<1>;

unit class MyGuiClass;
also is Gnome::Gtk3::Notebook;

submethod new ( |c ) {
  # let the Gnome::Gtk3::Notebook class process the options
  self.bless( :GtkNotebook, |c);
}

submethod BUILD ( ... ) {
  ...
}

Methods

new

default, no options

Create a new Notebook object.

multi method new ( )

:native-object

Create a Notebook object using a native object from elsewhere. See also Gnome::GObject::Object.

multi method new ( N-GObject :$native-object! )

:build-id

Create a Notebook object using a native object returned from a builder. See also Gnome::GObject::Object.

multi method new ( Str :$build-id! )

append-page

Appends a page to notebook.

Returns: the index (starting from 0) of the appended page in the notebook, or -1 if function fails

method append-page (
  N-GObject $child, N-GObject $tab_label --> Int
)

  • N-GObject $child; the Gnome::Gtk3::Widget to use as the contents of the page

  • N-GObject $tab_label; the Gnome::Gtk3::Widget to be used as the label for the page, or undefined to use the default label, “page N”

append-page-menu

Appends a page to notebook, specifying the widget to use as the label in the popup menu.

Returns: the index (starting from 0) of the appended page in the notebook, or -1 if function fails

method append-page-menu (
  N-GObject $child, N-GObject $tab_label, N-GObject $menu_label
  --> Int
)

  • N-GObject $child; the Gnome::Gtk3::Widget to use as the contents of the page

  • N-GObject $tab_label; the Gnome::Gtk3::Widget to be used as the label for the page, or undefined to use the default label, “page N”

  • N-GObject $menu_label; the widget to use as a label for the page-switch menu, if that is enabled. If undefined, and $tab-label is a Gnome::Gtk3::Label or undefined, then the menu label will be a newly created label with the same text as $tab-label; if $tab-label is not a Gnome::Gtk3::Label, $menu-label must be specified if the page-switch menu is to be used.

detach-tab

Removes the child from the notebook.

This function is very similar to Gnome::Gtk3::Container.remove(), but additionally informs the notebook that the removal is happening as part of a tab DND operation, which should not be cancelled.

method detach-tab ( N-GObject $child )

  • N-GObject $child; a child

get-action-widget, get-action-widget-rk

Gets one of the action widgets. See set-action-widget().

Returns: The action widget with the given $pack-type or undefined when this action widget has not been set

method get-action-widget ( GtkPackType $pack_type --> N-GObject )

method get-action-widget-rk (
  GtkPackType $pack_type, :$child-type? --> Gnome::GObject::Object
)

  • GtkPackType $pack_type; pack type of the action widget to receive

  • $child-type: This is an optional argument. You can specify a real type or a type as a string. In the latter case the type must be defined in a module which can be found by the Raku require call.

get-current-page

Returns the page number of the current page.

Returns: the index (starting from 0) of the current page in the notebook. If the notebook has no pages, then -1 will be returned.

method get-current-page ( --> Int )

get-group-name

Gets the current group name for notebook.

Returns: the group name, or undefined if none is set

method get-group-name ( --> Str )

get-menu-label, get-menu-label-rk

Retrieves the menu label widget of the page containing $child.

Returns: the menu label, or undefined if the notebook page does not have a menu label other than the default (the tab label).

method get-menu-label ( N-GObject $child --> N-GObject )
method get-menu-label-rk (
  N-GObject $child, :$child-type? --> Gnome::GObject::Object
)

  • N-GObject $child; a widget contained in a page of notebook

  • $child-type: This is an optional argument. You can specify a real type or a type as a string. In the latter case the type must be defined in a module which can be found by the Raku require call.

get-menu-label-text

Retrieves the text of the menu label for the page containing $child.

Returns: the text of the tab label, or undefined if the widget does not have a menu label other than the default menu label, or the menu label widget is not a Gnome::Gtk3::Label. The string is owned by the widget and must not be freed.

method get-menu-label-text ( N-GObject $child --> Str )

  • N-GObject $child; the child widget of a page of the notebook.

get-n-pages

Gets the number of pages in a notebook.

Returns: the number of pages in the notebook

method get-n-pages ( --> Int )

get-nth-page, get-nth-page-rk

Returns the child widget contained in page number $page-num.

Returns: the child widget, or undefined if $page-num is out of bounds

method get-nth-page ( Int() $page_num --> N-GObject )
method get-nth-page-rk (
  Int() $page_num, :$child-type? --> Gnome::GObject::Object
)

  • Int() $page_num; the index of a page in the notebook, or -1 to get the last page

  • $child-type: This is an optional argument. You can specify a real type or a type as a string. In the latter case the type must be defined in a module which can be found by the Raku require call.

get-scrollable

Returns whether the tab label area has arrows for scrolling. See set-scrollable().

Returns: True if arrows for scrolling are present

method get-scrollable ( --> Bool )

get-show-border

Returns whether a bevel will be drawn around the notebook pages. See set-show-border().

Returns: True if the bevel is drawn

method get-show-border ( --> Bool )

get-show-tabs

Returns whether the tabs of the notebook are shown. See set-show-tabs().

Returns: True if the tabs are shown

method get-show-tabs ( --> Bool )

get-tab-detachable

Returns whether the tab contents can be detached from notebook.

Returns: True if the tab is detachable.

method get-tab-detachable ( N-GObject $child --> Bool )

  • N-GObject $child; a child Gnome::Gtk3::Widget

get-tab-label, get-tab-label-rk

Returns the tab label widget for the page $$child. undefined is returned if $$child is not in notebook or if no tab label has specifically been set for $$child.

Returns: the tab label

method get-tab-label ( N-GObject $child --> N-GObject )
method get-tab-label-rk (
  N-GObject $child, :$child-type? --> Gnome::GObject::Object
)

  • N-GObject $child; the page

  • $child-type: This is an optional argument. You can specify a real type or a type as a string. In the latter case the type must be defined in a module which can be found by the Raku require call.

get-tab-label-text

Retrieves the text of the tab label for the page containing $child.

Returns: the text of the tab label, or undefined if the tab label widget is not a Gnome::Gtk3::Label. The string is owned by the widget and must not be freed.

method get-tab-label-text ( N-GObject $child --> Str )

  • N-GObject $child; a widget contained in a page of notebook

get-tab-pos

Gets the edge at which the tabs for switching pages in the notebook are drawn.

Returns: the edge at which the tabs are drawn

method get-tab-pos ( --> GtkPositionType )

get-tab-reorderable

Gets whether the tab can be reordered via drag and drop or not.

Returns: True if the tab is reorderable.

method get-tab-reorderable ( N-GObject $child --> Bool )

  • N-GObject $child; a child Gnome::Gtk3::Widget

insert-page

Insert a page into notebook at the given position.

Returns: the index (starting from 0) of the inserted page in the notebook, or -1 if function fails

method insert-page (
  N-GObject $child, N-GObject $tab_label, Int() $position
  --> Int
)

  • N-GObject $child; the Gnome::Gtk3::Widget to use as the contents of the page

  • N-GObject $tab_label; the Gnome::Gtk3::Widget to be used as the label for the page, or undefined to use the default label, “page N”

  • Int() $position; the index (starting at 0) at which to insert the page, or -1 to append the page after all other pages

insert-page-menu

Insert a page into notebook at the given position, specifying the widget to use as the label in the popup menu.

Returns: the index (starting from 0) of the inserted page in the notebook

method insert-page-menu (
  N-GObject $child, N-GObject $tab_label,
  N-GObject $menu_label, Int() $position
  --> Int
)

  • N-GObject $child; the Gnome::Gtk3::Widget to use as the contents of the page

  • N-GObject $tab_label; the Gnome::Gtk3::Widget to be used as the label for the page, or undefined to use the default label, “page N”

  • N-GObject $menu_label; the widget to use as a label for the page-switch menu, if that is enabled. If undefined, and $tab-label is a Gnome::Gtk3::Label or undefined, then the menu label will be a newly created label with the same text as $tab-label; if $tab-label is not a Gnome::Gtk3::Label, $menu-label must be specified if the page-switch menu is to be used.

  • Int() $position; the index (starting at 0) at which to insert the page, or -1 to append the page after all other pages.

next-page

Switches to the next page. Nothing happens if the current page is the last page.

method next-page ( )

page-num

Finds the index of the page which contains the given child widget.

Returns: the index of the page containing $child, or -1 if $child is not in the notebook

method page-num ( N-GObject $child --> Int )

  • N-GObject $child; a Gnome::Gtk3::Widget

Disables the popup menu.

method popup-disable ( )

Enables the popup menu: if the user clicks with the right mouse button on the tab labels, a menu with all the pages will be popped up.

method popup-enable ( )

prepend-page

Prepends a page to notebook.

Returns: the index (starting from 0) of the prepended page in the notebook, or -1 if function fails

method prepend-page ( N-GObject $child, N-GObject $tab_label --> Int )

  • N-GObject $child; the Gnome::Gtk3::Widget to use as the contents of the page

  • N-GObject $tab_label; the Gnome::Gtk3::Widget to be used as the label for the page, or undefined to use the default label, “page N”

prepend-page-menu

Prepends a page to notebook, specifying the widget to use as the label in the popup menu.

Returns: the index (starting from 0) of the prepended page in the notebook, or -1 if function fails

method prepend-page-menu ( N-GObject $child, N-GObject $tab_label, N-GObject $menu_label --> Int )

  • N-GObject $child; the Gnome::Gtk3::Widget to use as the contents of the page

  • N-GObject $tab_label; the Gnome::Gtk3::Widget to be used as the label for the page, or undefined to use the default label, “page N”

  • N-GObject $menu_label; the widget to use as a label for the page-switch menu, if that is enabled. If undefined, and $tab-label is a Gnome::Gtk3::Label or undefined, then the menu label will be a newly created label with the same text as $tab-label; if $tab-label is not a Gnome::Gtk3::Label, $menu-label must be specified if the page-switch menu is to be used.

prev-page

Switches to the previous page. Nothing happens if the current page is the first page.

method prev-page ( )

remove-page

Removes a page from the notebook given its index in the notebook.

method remove-page ( Int() $page_num )

  • Int() $page_num; the index of a notebook page, starting from 0. If -1, the last page will be removed.

reorder-child

Reorders the page containing $child, so that it appears in position $position. If $position is greater than or equal to the number of children in the list or negative, $child will be moved to the end of the list.

method reorder-child ( N-GObject $child, Int() $position )

  • N-GObject $child; the child to move

  • Int() $position; the new position, or -1 to move to the end

set-action-widget

Sets $widget as one of the action widgets. Depending on the pack type the widget will be placed before or after the tabs. You can use a Gnome::Gtk3::Box if you need to pack more than one widget on the same side.

Note that action widgets are “internal” children of the notebook and thus not included in the list returned from gtk-container-foreach().

method set-action-widget ( N-GObject $widget, GtkPackType $pack_type )

  • N-GObject $widget; a Gnome::Gtk3::Widget

  • GtkPackType $pack_type; pack type of the action widget

set-current-page

Switches to the page number $page-num.

Note that due to historical reasons, GtkNotebook refuses to switch to a page unless the child widget is visible. Therefore, it is recommended to show child widgets before adding them to a notebook.

method set-current-page ( Int() $page_num )

  • Int() $page_num; index of the page to switch to, starting from 0. If negative, the last page will be used. If greater than the number of pages in the notebook, nothing will be done.

set-group-name

Sets a group name for notebook.

Notebooks with the same name will be able to exchange tabs via drag and drop. A notebook with a undefined group name will not be able to exchange tabs with any other notebook.

method set-group-name ( Str $group_name )

  • Str $group_name; the name of the notebook group, or undefined to unset it

set-menu-label

Changes the menu label for the page containing $child.

method set-menu-label ( N-GObject $child, N-GObject $menu_label )

  • N-GObject $child; the child widget

  • N-GObject $menu_label; the menu label, or undefined for default

set-menu-label-text

Creates a new label and sets it as the menu label of $child.

method set-menu-label-text ( N-GObject $child, Str $menu_text )

  • N-GObject $child; the child widget

  • Str $menu_text; the label text

set-scrollable

Sets whether the tab label area will have arrows for scrolling if there are too many tabs to fit in the area.

method set-scrollable ( Bool $scrollable )

  • Bool $scrollable; True if scroll arrows should be added

set-show-border

Sets whether a bevel will be drawn around the notebook pages. This only has a visual effect when the tabs are not shown. See set-show-tabs().

method set-show-border ( Bool $show_border )

  • Bool $show_border; True if a bevel should be drawn around the notebook

set-show-tabs

Sets whether to show the tabs for the notebook or not.

method set-show-tabs ( Bool $show_tabs )

  • Bool $show_tabs; True if the tabs should be shown

set-tab-detachable

Sets whether the tab can be detached from notebook to another notebook or widget.

Note that 2 notebooks must share a common group identificator (see set-group-name()) to allow automatic tabs interchange between them.

If you want a widget to interact with a notebook through DnD (i.e.: accept dragged tabs from it) it must be set as a drop destination and accept the target “GTK-NOTEBOOK-TAB”. The notebook will fill the selection with a GtkWidget** pointing to the child widget that corresponds to the dropped tab.

Note that you should use detach-tab() instead of Gnome::Gtk3::Container.remove() if you want to remove the tab from the source notebook as part of accepting a drop. Otherwise, the source notebook will think that the dragged tab was removed from underneath the ongoing drag operation, and will initiate a drag cancel animation.

If you want a notebook to accept drags from other widgets, you will have to set your own DnD code to do it.

method set-tab-detachable ( N-GObject $child, Bool $detachable )

  • N-GObject $child; a child Gnome::Gtk3::Widget

  • Bool $detachable; whether the tab is detachable or not

set-tab-label

Changes the tab label for $child. If undefined is specified for $tab-label, then the page will have the label “page N”.

method set-tab-label ( N-GObject $child, N-GObject $tab_label )

  • N-GObject $child; the page

  • N-GObject $tab_label; the tab label widget to use, or undefined for default tab label

set-tab-label-text

Creates a new label and sets it as the tab label for the page containing $child.

method set-tab-label-text ( N-GObject $child, Str $tab_text )

  • N-GObject $child; the page

  • Str $tab_text; the label text

set-tab-pos

Sets the edge at which the tabs for switching pages in the notebook are drawn.

method set-tab-pos ( GtkPositionType $pos )

  • GtkPositionType $pos; the edge to draw the tabs at

set-tab-reorderable

Sets whether the notebook tab can be reordered via drag and drop or not.

method set-tab-reorderable ( N-GObject $child, Bool $reorderable )

  • N-GObject $child; a child Gnome::Gtk3::Widget

  • Bool $reorderable; whether the tab is reorderable or not

_gtk_notebook_new

Creates a new Gnome::Gtk3::Notebook widget with no pages.

Returns: the newly created Gnome::Gtk3::Notebook

method _gtk_notebook_new ( --> N-GObject )

Signals

There are two ways to connect to a signal. The first option you have is to use register-signal() from Gnome::GObject::Object. The second option is to use connect-object() directly from Gnome::GObject::Signal.

First method

The positional arguments of the signal handler are all obligatory as well as their types. The named attributes :$widget and user data are optional.

# handler method
method mouse-event ( GdkEvent $event, :$widget ) { ... }

# connect a signal on window object
my Gnome::Gtk3::Window $w .= new( ... );
$w.register-signal( self, 'mouse-event', 'button-press-event');

Second method

my Gnome::Gtk3::Window $w .= new( ... );
my Callable $handler = sub (
  N-GObject $native, GdkEvent $event, OpaquePointer $data
) {
  ...
}

$w.connect-object( 'button-press-event', $handler);

Also here, the types of positional arguments in the signal handler are important. This is because both methods register-signal() and connect-object() are using the signatures of the handler routines to setup the native call interface.

Supported signals

create-window

method handler (
  N-GObject #`{ is widget } $n-gobject #`{ is widget },
  Int $int,
  Int $int,
  Int :$_handle_id,
  Gnome::GObject::Object :_widget($notebook),
  *%user-options
  --> Unknown type GTK_TYPE_NOTEBOOK
);

  • $notebook;

  • $n-gobject #`{ is widget };

  • $int;

  • $int;

  • $_handle_id; the registered event handler id

page-added

method handler (
  N-GObject #`{ is widget } $n-gobject #`{ is widget },
   $,
  Int :$_handle_id,
  Gnome::GObject::Object :_widget($notebook),
  *%user-options
  --> Int
);

  • $notebook;

  • $n-gobject #`{ is widget };

  • $;

  • $_handle_id; the registered event handler id

page-removed

method handler (
  N-GObject #`{ is widget } $n-gobject #`{ is widget },
   $,
  Int :$_handle_id,
  Gnome::GObject::Object :_widget($notebook),
  *%user-options
  --> Int
);

  • $notebook;

  • $n-gobject #`{ is widget };

  • $;

  • $_handle_id; the registered event handler id

page-reordered

method handler (
  N-GObject #`{ is widget } $n-gobject #`{ is widget },
   $,
  Int :$_handle_id,
  Gnome::GObject::Object :_widget($notebook),
  *%user-options
  --> Int
);

  • $notebook;

  • $n-gobject #`{ is widget };

  • $;

  • $_handle_id; the registered event handler id

reorder-tab

method handler (
  Unknown type GTK_TYPE_DIRECTION_TYPE $unknown type gtk_type_direction_type,
  Int $int,
  Int :$_handle_id,
  Gnome::GObject::Object :_widget($notebook),
  *%user-options
  --> Int
);

  • $notebook;

  • $unknown type gtk_type_direction_type;

  • $int;

  • $_handle_id; the registered event handler id

switch-page

Emitted when the user or a function changes the current page.

method handler (
  N-GObject #`{ is widget } $page,
   $page_num,
  Int :$_handle_id,
  Gnome::GObject::Object :_widget($notebook),
  *%user-options
  --> Int
);

  • $notebook; the object which received the signal.

  • $page; the new current page

  • $page_num; the index of the page

  • $_handle_id; the registered event handler id

Properties

An example of using a string type property of a Gnome::Gtk3::Label object. This is just showing how to set/read a property, not that it is the best way to do it. This is because a) The class initialization often provides some options to set some of the properties and b) the classes provide many methods to modify just those properties. In the case below one can use new(:label('my text label')) or .set-text('my text label').

my Gnome::Gtk3::Label $label .= new;
my Gnome::GObject::Value $gv .= new(:init(G_TYPE_STRING));
$label.get-property( 'label', $gv);
$gv.set-string('my text label');

Supported properties

Enable Popup: enable-popup

If TRUE, pressing the right mouse button on the notebook pops up a menu that you can use to go to a page

Default value: False

The Gnome::GObject::Value type of property enable-popup is G_TYPE_BOOLEAN.

Group Name: group-name

Group name for tab drag and drop.

The Gnome::GObject::Value type of property group-name is G_TYPE_STRING.

Page: page

The Gnome::GObject::Value type of property page is G_TYPE_INT.

Scrollable: scrollable

If TRUE, scroll arrows are added if there are too many tabs to fit Default value: False

The Gnome::GObject::Value type of property scrollable is G_TYPE_BOOLEAN.

Show Border: show-border

Whether the border should be shown Default value: True

The Gnome::GObject::Value type of property show-border is G_TYPE_BOOLEAN.

Show Tabs: show-tabs

Whether tabs should be shown Default value: True

The Gnome::GObject::Value type of property show-tabs is G_TYPE_BOOLEAN.

[gtk_notebook_] append_page

Appends a page to the notebook.

Returns: the index (starting from 0) of the appended page in the notebook, or -1 if function fails

method gtk_notebook_append_page (
  N-GObject $child, N-GObject $tab_label
  --> Int
)

  • N-GObject $child; the Gnome::Gtk3::Widget to use as the contents of the page.

  • N-GObject $tab_label; the Gnome::Gtk3::Widget to be used as the label for the page, or an undefined value to use the default label, “page N”

[gtk_notebook_] append_page_menu

Appends a page to notebook, specifying the widget to use as the label in the popup menu.

Returns: the index (starting from 0) of the appended page in the notebook, or -1 if function fails

method gtk_notebook_append_page_menu ( N-GObject $child, N-GObject $tab_label, N-GObject $menu_label --> Int )

  • N-GObject $child; the Gnome::Gtk3::Widget to use as the contents of the page

  • N-GObject $tab_label; (allow-none): the Gnome::Gtk3::Widget to be used as the label for the page, or Any to use the default label, “page N”

  • N-GObject $menu_label; (allow-none): the widget to use as a label for the page-switch menu, if that is enabled. If Any, and tab_label is a Gnome::Gtk3::Label or Any, then the menu label will be a newly created label with the same text as tab_label; if tab_label is not a Gnome::Gtk3::Label, menu_label must be specified if the page-switch menu is to be used.

[gtk_notebook_] prepend_page

Prepends a page to notebook.

Returns: the index (starting from 0) of the prepended page in the notebook, or -1 if function fails

method gtk_notebook_prepend_page ( N-GObject $child, N-GObject $tab_label --> Int )

  • N-GObject $child; the Gnome::Gtk3::Widget to use as the contents of the page

  • N-GObject $tab_label; (allow-none): the Gnome::Gtk3::Widget to be used as the label for the page, or Any to use the default label, “page N”

[gtk_notebook_] prepend_page_menu

Prepends a page to notebook, specifying the widget to use as the label in the popup menu.

Returns: the index (starting from 0) of the prepended page in the notebook, or -1 if function fails

method gtk_notebook_prepend_page_menu ( N-GObject $child, N-GObject $tab_label, N-GObject $menu_label --> Int )

  • N-GObject $child; the Gnome::Gtk3::Widget to use as the contents of the page

  • N-GObject $tab_label; (allow-none): the Gnome::Gtk3::Widget to be used as the label for the page, or Any to use the default label, “page N”

  • N-GObject $menu_label; (allow-none): the widget to use as a label for the page-switch menu, if that is enabled. If Any, and tab_label is a Gnome::Gtk3::Label or Any, then the menu label will be a newly created label with the same text as tab_label; if tab_label is not a Gnome::Gtk3::Label, menu_label must be specified if the page-switch menu is to be used.

[gtk_notebook_] insert_page

Insert a page into notebook at the given position.

Returns: the index (starting from 0) of the inserted page in the notebook, or -1 if function fails

method gtk_notebook_insert_page ( N-GObject $child, N-GObject $tab_label, Int $position --> Int )

  • N-GObject $child; the Gnome::Gtk3::Widget to use as the contents of the page

  • N-GObject $tab_label; (allow-none): the Gnome::Gtk3::Widget to be used as the label for the page, or Any to use the default label, “page N”

  • Int $position; the index (starting at 0) at which to insert the page, or -1 to append the page after all other pages

[gtk_notebook_] insert_page_menu

Insert a page into notebook at the given position, specifying the widget to use as the label in the popup menu.

Returns: the index (starting from 0) of the inserted page in the notebook

method gtk_notebook_insert_page_menu ( N-GObject $child, N-GObject $tab_label, N-GObject $menu_label, Int $position --> Int )

  • N-GObject $child; the Gnome::Gtk3::Widget to use as the contents of the page

  • N-GObject $tab_label; (allow-none): the Gnome::Gtk3::Widget to be used as the label for the page, or Any to use the default label, “page N”

  • N-GObject $menu_label; (allow-none): the widget to use as a label for the page-switch menu, if that is enabled. If Any, and tab_label is a Gnome::Gtk3::Label or Any, then the menu label will be a newly created label with the same text as tab_label; if tab_label is not a Gnome::Gtk3::Label, menu_label must be specified if the page-switch menu is to be used.

  • Int $position; the index (starting at 0) at which to insert the page, or -1 to append the page after all other pages.

[gtk_notebook_] remove_page

Removes a page from the notebook given its index in the notebook.

method gtk_notebook_remove_page ( Int $page_num )

  • Int $page_num; the index of a notebook page, starting from 0. If -1, the last page will be removed.

[gtk_notebook_] set_group_name

Sets a group name for notebook.

Notebooks with the same name will be able to exchange tabs via drag and drop. A notebook with a Any group name will not be able to exchange tabs with any other notebook.

Since: 2.24

method gtk_notebook_set_group_name ( Str $group_name )

  • Str $group_name; (allow-none): the name of the notebook group, or Any to unset it

[gtk_notebook_] get_group_name

Gets the current group name for notebook.

Returns: (nullable) (transfer none): the group name, or Any if none is set

Since: 2.24

method gtk_notebook_get_group_name ( --> Str )

[gtk_notebook_] get_current_page

Returns the page number of the current page.

Returns: the index (starting from 0) of the current page in the notebook. If the notebook has no pages, then -1 will be returned.

method gtk_notebook_get_current_page ( --> Int )

[gtk_notebook_] get_nth_page

Returns the child widget contained in page number page_num.

Returns: (nullable) (transfer none): the child widget, or Any if page_num is out of bounds

method gtk_notebook_get_nth_page ( Int $page_num --> N-GObject )

  • Int $page_num; the index of a page in the notebook, or -1 to get the last page

[gtk_notebook_] get_n_pages

Gets the number of pages in a notebook.

Returns: the number of pages in the notebook

Since: 2.2

method gtk_notebook_get_n_pages ( --> Int )

[gtk_notebook_] page_num

Finds the index of the page which contains the given child widget.

Returns: the index of the page containing child, or -1 if child is not in the notebook

method gtk_notebook_page_num ( N-GObject $child --> Int )

  • N-GObject $child; a Gnome::Gtk3::Widget

[gtk_notebook_] set_current_page

Switches to the page number page_num.

Note that due to historical reasons, Gnome::Gtk3::Notebook refuses to switch to a page unless the child widget is visible. Therefore, it is recommended to show child widgets before adding them to a notebook.

method gtk_notebook_set_current_page ( Int $page_num )

  • Int $page_num; index of the page to switch to, starting from 0. If negative, the last page will be used. If greater than the number of pages in the notebook, nothing will be done.

[gtk_notebook_] next_page

Switches to the next page. Nothing happens if the current page is the last page.

method gtk_notebook_next_page ( )

[gtk_notebook_] prev_page

Switches to the previous page. Nothing happens if the current page is the first page.

method gtk_notebook_prev_page ( )

[gtk_notebook_] set_show_border

Sets whether a bevel will be drawn around the notebook pages. This only has a visual effect when the tabs are not shown. See gtk_notebook_set_show_tabs().

method gtk_notebook_set_show_border ( Int $show_border )

  • Int $show_border; 1 if a bevel should be drawn around the notebook

[gtk_notebook_] get_show_border

Returns whether a bevel will be drawn around the notebook pages. See gtk_notebook_set_show_border().

Returns: 1 if the bevel is drawn

method gtk_notebook_get_show_border ( --> Int )

[gtk_notebook_] set_show_tabs

Sets whether to show the tabs for the notebook or not.

method gtk_notebook_set_show_tabs ( Int $show_tabs )

  • Int $show_tabs; 1 if the tabs should be shown

[gtk_notebook_] get_show_tabs

Returns whether the tabs of the notebook are shown. See gtk_notebook_set_show_tabs().

Returns: 1 if the tabs are shown

method gtk_notebook_get_show_tabs ( --> Int )

[gtk_notebook_] set_tab_pos

Sets the edge at which the tabs for switching pages in the notebook are drawn.

method gtk_notebook_set_tab_pos ( GtkPositionType $pos )

  • GtkPositionType $pos; the edge to draw the tabs at

[gtk_notebook_] get_tab_pos

Gets the edge at which the tabs for switching pages in the notebook are drawn.

Returns: the edge at which the tabs are drawn

method gtk_notebook_get_tab_pos ( --> GtkPositionType )

[gtk_notebook_] set_scrollable

Sets whether the tab label area will have arrows for scrolling if there are too many tabs to fit in the area.

method gtk_notebook_set_scrollable ( Int $scrollable )

  • Int $scrollable; 1 if scroll arrows should be added

[gtk_notebook_] get_scrollable

Returns whether the tab label area has arrows for scrolling. See gtk_notebook_set_scrollable().

Returns: 1 if arrows for scrolling are present

method gtk_notebook_get_scrollable ( --> Int )

[gtk_notebook_] popup_enable

Enables the popup menu: if the user clicks with the right mouse button on the tab labels, a menu with all the pages will be popped up.

method gtk_notebook_popup_enable ( )

[gtk_notebook_] popup_disable

Disables the popup menu.

method gtk_notebook_popup_disable ( )

[gtk_notebook_] get_tab_label

Returns the tab label widget for the page child. Any is returned if child is not in notebook or if no tab label has specifically been set for child.

Returns: (transfer none) (nullable): the tab label

method gtk_notebook_get_tab_label ( N-GObject $child --> N-GObject )

  • N-GObject $child; the page

[gtk_notebook_] set_tab_label

Changes the tab label for child. If Any is specified for tab_label, then the page will have the label “page N”.

method gtk_notebook_set_tab_label ( N-GObject $child, N-GObject $tab_label )

  • N-GObject $child; the page

  • N-GObject $tab_label; (allow-none): the tab label widget to use, or Any for default tab label

[gtk_notebook_] set_tab_label_text

Creates a new label and sets it as the tab label for the page containing child.

method gtk_notebook_set_tab_label_text ( N-GObject $child, Str $tab_text )

  • N-GObject $child; the page

  • Str $tab_text; the label text

[gtk_notebook_] get_tab_label_text

Retrieves the text of the tab label for the page containing child.

Returns: (nullable): the text of the tab label, or Any if the tab label widget is not a Gnome::Gtk3::Label. The string is owned by the widget and must not be freed.

method gtk_notebook_get_tab_label_text ( N-GObject $child --> Str )

  • N-GObject $child; a widget contained in a page of notebook

[gtk_notebook_] get_menu_label

Retrieves the menu label widget of the page containing child.

Returns: (nullable) (transfer none): the menu label, or Any if the notebook page does not have a menu label other than the default (the tab label).

method gtk_notebook_get_menu_label ( N-GObject $child --> N-GObject )

  • N-GObject $child; a widget contained in a page of notebook

[gtk_notebook_] set_menu_label

Changes the menu label for the page containing child.

method gtk_notebook_set_menu_label ( N-GObject $child, N-GObject $menu_label )

  • N-GObject $child; the child widget

  • N-GObject $menu_label; (allow-none): the menu label, or Any for default

[gtk_notebook_] set_menu_label_text

Creates a new label and sets it as the menu label of child.

method gtk_notebook_set_menu_label_text ( N-GObject $child, Str $menu_text )

  • N-GObject $child; the child widget

  • Str $menu_text; the label text

[gtk_notebook_] get_menu_label_text

Retrieves the text of the menu label for the page containing child.

Returns: (nullable): the text of the tab label, or Any if the widget does not have a menu label other than the default menu label, or the menu label widget is not a Gnome::Gtk3::Label. The string is owned by the widget and must not be freed.

method gtk_notebook_get_menu_label_text ( N-GObject $child --> Str )

  • N-GObject $child; the child widget of a page of the notebook.

[gtk_notebook_] reorder_child

Reorders the page containing child, so that it appears in position position. If position is greater than or equal to the number of children in the list or negative, child will be moved to the end of the list.

method gtk_notebook_reorder_child ( N-GObject $child, Int $position )

  • N-GObject $child; the child to move

  • Int $position; the new position, or -1 to move to the end

[gtk_notebook_] get_tab_reorderable

Gets whether the tab can be reordered via drag and drop or not.

Returns: 1 if the tab is reorderable.

Since: 2.10

method gtk_notebook_get_tab_reorderable ( N-GObject $child --> Int )

  • N-GObject $child; a child Gnome::Gtk3::Widget

[gtk_notebook_] set_tab_reorderable

Sets whether the notebook tab can be reordered via drag and drop or not.

Since: 2.10

method gtk_notebook_set_tab_reorderable ( N-GObject $child, Int $reorderable )

  • N-GObject $child; a child Gnome::Gtk3::Widget

  • Int $reorderable; whether the tab is reorderable or not

[gtk_notebook_] get_tab_detachable

Returns whether the tab contents can be detached from notebook.

Returns: 1 if the tab is detachable.

Since: 2.10

method gtk_notebook_get_tab_detachable ( N-GObject $child --> Int )

  • N-GObject $child; a child Gnome::Gtk3::Widget

[gtk_notebook_] set_tab_detachable

Sets whether the tab can be detached from notebook to another notebook or widget.

Note that 2 notebooks must share a common group identificator (see gtk_notebook_set_group_name()) to allow automatic tabs interchange between them.

If you want a widget to interact with a notebook through DnD (i.e.: accept dragged tabs from it) it must be set as a drop destination and accept the target “GTK_NOTEBOOK_TAB”. The notebook will fill the selection with a Gnome::Gtk3::Widget** pointing to the child widget that corresponds to the dropped tab.

Note that you should use gtk_notebook_detach_tab() instead of gtk_container_remove() if you want to remove the tab from the source notebook as part of accepting a drop. Otherwise, the source notebook will think that the dragged tab was removed from underneath the ongoing drag operation, and will initiate a drag cancel animation.

|[<!-- language="C" --> static void on_drag_data_received (Gnome::Gtk3::Widget *widget, Gnome::Gdk3::DragContext *context, gint x, gint y, Gnome::Gtk3::SelectionData *data, guint info, guint time, gpointer user_data) { Gnome::Gtk3::Widget *notebook; Gnome::Gtk3::Widget **child;

notebook = gtk_drag_get_source_widget (context); child = (void*) gtk_selection_data_get_data (data);

// process_widget (*child);

gtk_notebook_detach_tab (GTK_NOTEBOOK (notebook), *child); } ]|

If you want a notebook to accept drags from other widgets, you will have to set your own DnD code to do it.

Since: 2.10

method gtk_notebook_set_tab_detachable ( N-GObject $child, Int $detachable )

  • N-GObject $child; a child Gnome::Gtk3::Widget

  • Int $detachable; whether the tab is detachable or not

[gtk_notebook_] detach_tab

Removes the child from the notebook.

This function is very similar to gtk_container_remove(), but additionally informs the notebook that the removal is happening as part of a tab DND operation, which should not be cancelled.

Since: 3.16

method gtk_notebook_detach_tab ( N-GObject $child )

  • N-GObject $child; a child

[gtk_notebook_] get_action_widget

Gets one of the action widgets. See gtk_notebook_set_action_widget().

Returns: (nullable) (transfer none): The action widget with the given pack_type or Any when this action widget has not been set

Since: 2.20

method gtk_notebook_get_action_widget ( GtkPackType $pack_type --> N-GObject )

  • GtkPackType $pack_type; pack type of the action widget to receive

[gtk_notebook_] set_action_widget

Sets widget as one of the action widgets. Depending on the pack type the widget will be placed before or after the tabs. You can use a Gnome::Gtk3::Box if you need to pack more than one widget on the same side.

Note that action widgets are “internal” children of the notebook and thus not included in the list returned from gtk_container_foreach().

Since: 2.20

method gtk_notebook_set_action_widget ( N-GObject $widget, GtkPackType $pack_type )

  • N-GObject $widget; a Gnome::Gtk3::Widget

  • GtkPackType $pack_type; pack type of the action widget

Signals

There are two ways to connect to a signal. The first option you have is to use register-signal() from Gnome::GObject::Object. The second option is to use g_signal_connect_object() directly from Gnome::GObject::Signal.

First method

The positional arguments of the signal handler are all obligatory as well as their types. The named attributes :$widget and user data are optional.

# handler method
method mouse-event ( N-GdkEvent $event, :$widget ) { ... }

# connect a signal on window object
my Gnome::Gtk3::Window $w .= new( ... );
$w.register-signal( self, 'mouse-event', 'button-press-event');

Second method

my Gnome::Gtk3::Window $w .= new( ... );
my Callable $handler = sub (
  N-GObject $native, N-GdkEvent $event, OpaquePointer $data
) {
  ...
}

$w.connect-object( 'button-press-event', $handler);

Also here, the types of positional arguments in the signal handler are important. This is because both methods register-signal() and g_signal_connect_object() are using the signatures of the handler routines to setup the native call interface.

Supported signals

switch-page

Emitted when the user or a function changes the current page.

method handler (
  N-GObject #`{ is widget } $page,
  UInt $page_num,
  Int :$_handler_id,
  Gnome::GObject::Object :_widget($notebook),
  *%user-options
  --> Int
);

  • $notebook; the object which received the signal.

  • $page; the new current page

  • $page_num; the index of the page

page-reordered

the page-reordered signal is emitted in the notebook right after a page has been reordered.

Since: 2.10

method handler (
  N-GObject #`{ is widget } $child,
  UInt $page_num,
  Int :$_handler_id,
  Gnome::GObject::Object :_widget($notebook),
  *%user-options
  --> Int
);

  • $notebook; the Gnome::Gtk3::Notebook

  • $child; the child Gnome::Gtk3::Widget affected

  • $page_num; the new page number for child

page-removed

the page-removed signal is emitted in the notebook right after a page is removed from the notebook.

Since: 2.10

method handler (
  N-GObject #`{ is widget } $child,
  UInt $page_num,
  Int :$_handler_id,
  Gnome::GObject::Object :_widget($notebook),
  *%user-options
  --> Int
);

  • $notebook; the Gnome::Gtk3::Notebook

  • $child; the child Gnome::Gtk3::Widget affected

  • $page_num; the child page number

page-added

the page-added signal is emitted in the notebook right after a page is added to the notebook.

Since: 2.10

method handler (
  N-GObject #`{ is widget } $child,
  UInt $page_num,
  Int :$_handler_id,
  Gnome::GObject::Object :_widget($notebook),
  *%user-options
  --> Int
);

  • $notebook; the Gnome::Gtk3::Notebook

  • $child; the child Gnome::Gtk3::Widget affected

  • $page_num; the new page number for child

create-window

The create-window signal is emitted when a detachable tab is dropped on the root window.

A handler for this signal can create a window containing a notebook where the tab will be attached. It is also responsible for moving/resizing the window and adding the necessary properties to the notebook (e.g. the group-name ).

Returns: a Gnome::Gtk3::Notebook that page should be added to, or Any.

Since: 2.12

method handler (
  N-GObject #`{ is widget } $page,
  Int $x,
  Int $y,
  Int :$_handler_id,
  Gnome::GObject::Object :_widget($notebook),
  *%user-options
);

  • $notebook; the Gnome::Gtk3::Notebook emitting the signal

  • $page; the tab of notebook that is being detached

  • $x; the X coordinate where the drop happens

  • $y; the Y coordinate where the drop happens

reorder-tab

method handler (
  Int $arg1, #`{ GtkDirectionType }
  Int $arg2, #`{ Bool }
  Int :$_handler_id,
  Gnome::GObject::Object :_widget($notebook),
  *%user-options
  --> Int
);

  • $notebook; the Gnome::Gtk3::Notebook emitting the signal

  • $arg1; ?

  • $arg2; ?

page-reordered

method handler (
  N-GObject $child, #`{ is widget }
  uint $page-num,
  Int :$_handler_id,
  Gnome::GObject::Object :_widget($notebook),
  *%user-options
  --> Int
);

  • $notebook; the Gnome::Gtk3::Notebook emitting the signal

  • $child; the child Gtk Widget affected

  • $page-num; the new page number for child

page-removed

method handler (
  N-GObject $child, #`{ is widget }
  uint $page-num,
  Int :$_handler_id,
  Gnome::GObject::Object :_widget($notebook),
  *%user-options
  --> Int
);

  • $notebook; the Gnome::Gtk3::Notebook emitting the signal

  • $child; the child Gtk Widget affected

  • $page-num; the new page number for child

page-added

method handler (
  N-GObject $child, #`{ is widget }
  uint $page-num,
  Int :$_handler_id,
  Gnome::GObject::Object :_widget($notebook),
  *%user-options
  --> Int
);

  • $notebook; the Gnome::Gtk3::Notebook emitting the signal

  • $child; the child Gtk Widget affected

  • $page-num; the new page number for child

create-window

method handler (
  N-GObject #`{ is widget } $n-gobject #`{ is widget },
  Int $int,
  Int $int,
  Int :$_handler_id,
  Gnome::GObject::Object :_widget($notebook),
  *%user-options
  --> Unknown type GTK_TYPE_NOTEBOOK
);

  • $notebook;

  • $n-gobject #`{ is widget };

  • $int;

  • $int;
