Gnome::Gtk4::Frame

Description§

Gnome::Gtk4::Frame is a widget that surrounds its child with a decorative frame and an optional label.

UNKNOWN image§

If present, the label is drawn inside the top edge of the frame. The horizontal position of the label can be controlled with .set-label-align().

Gnome::Gtk4::Frame clips its child. You can use this to add rounded corners to widgets, but be aware that it also cuts off shadows.

GtkFrame as GtkBuildable§

The Gnome::Gtk4::Frame implementation of the Gnome::Gtk4::R-Buildable interface supports placing a child in the label position by specifying “label” as the “type” attribute of a `<child>` element. A normal content child can be specified without specifying a `<child>` type attribute.

An example of a UI definition fragment with GtkFrame:

CSS nodes§

Gnome::Gtk4::Frame has a main CSS node with name “frame”, which is used to draw the visible border. You can set the appearance of the border using CSS properties like “border-style” on this node.

Accessibility§

Gnome::Gtk4::Frame uses the GTK_ACCESSIBLE_ROLE_GROUP role.

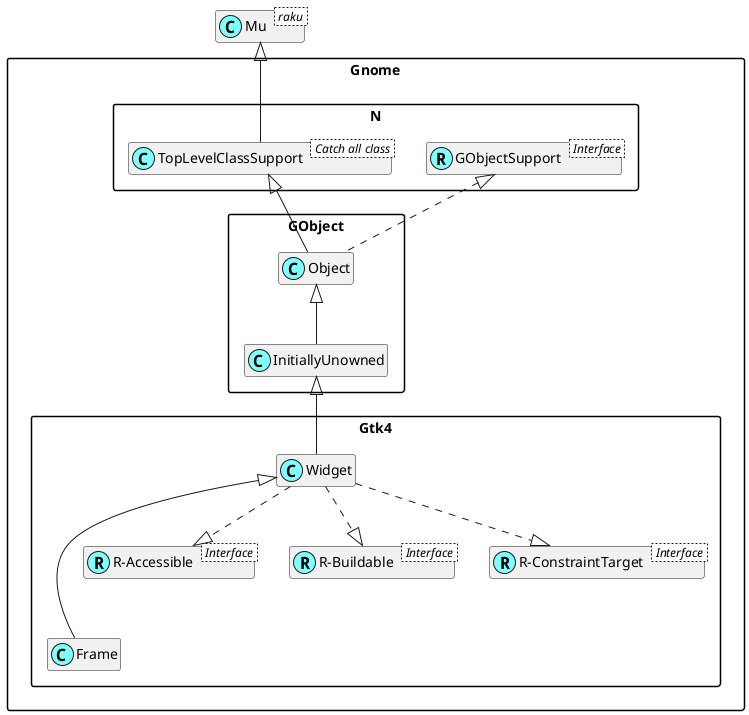

Uml Diagram§

UNKNOWN image§

Class initialization§

new§

:native-object§

Create an object using a native object from an object of the same type found elsewhere. See also Gnome::N::TopLevelSupportClass.

multi method new ( N-Object() :$native-object! )

new-frame§

Creates a new Gnome::Gtk4::Frame, with optional label $label.

If $label is undefined, the label is omitted.

method new-frame ( Str $label --> Gnome::Gtk4::Frame )

• $label; the text to use as the label of the frame.

Methods§

get-child§

Gets the child widget of $frame.

method get-child (--> N-Object )

Return value; the child widget of $frame.

get-label§

Returns the frame labels text.

If the frame's label widget is not a Gnome::Gtk4::Label, undefined is returned.

method get-label (--> Str )

Return value; the text in the label, or undefined if there was no label widget or the label widget was not a Gnome::Gtk4::Label. This string is owned by GTK and must not be modified or freed..

get-label-align§

Retrieves the X alignment of the frame’s label.

method get-label-align (--> Num )

Return value; the frames X alignment.

get-label-widget§

Retrieves the label widget for the frame.

method get-label-widget (--> N-Object )

Return value; the label widget.

set-child§

Sets the child widget of $frame.

method set-child ( N-Object() $child )

• $child; the child widget.

set-label§

Creates a new Gnome::Gtk4::Label with the $label and sets it as the frame's label widget.

method set-label ( Str $label )

• $label; the text to use as the label of the frame.

set-label-align§

Sets the X alignment of the frame widget’s label.

The default value for a newly created frame is 0.0.

method set-label-align ( Num() $xalign )

• $xalign; The position of the label along the top edge of the widget. A value of 0.0 represents left alignment; 1.0 represents right alignment..

set-label-widget§

Sets the label widget for the frame.

This is the widget that will appear embedded in the top edge of the frame as a title.

method set-label-widget ( N-Object() $label-widget )

• $label-widget; the new label widget.
