Gnome::Gtk4::GestureDrag

Description§

Gnome::Gtk4::GestureDrag is a Gnome::Gtk4::Gesture implementation for drags.

The drag operation itself can be tracked throughout the drag-begin, drag-update and drag-end signals, and the relevant coordinates can be extracted through .get-offset() and .get-start-point().

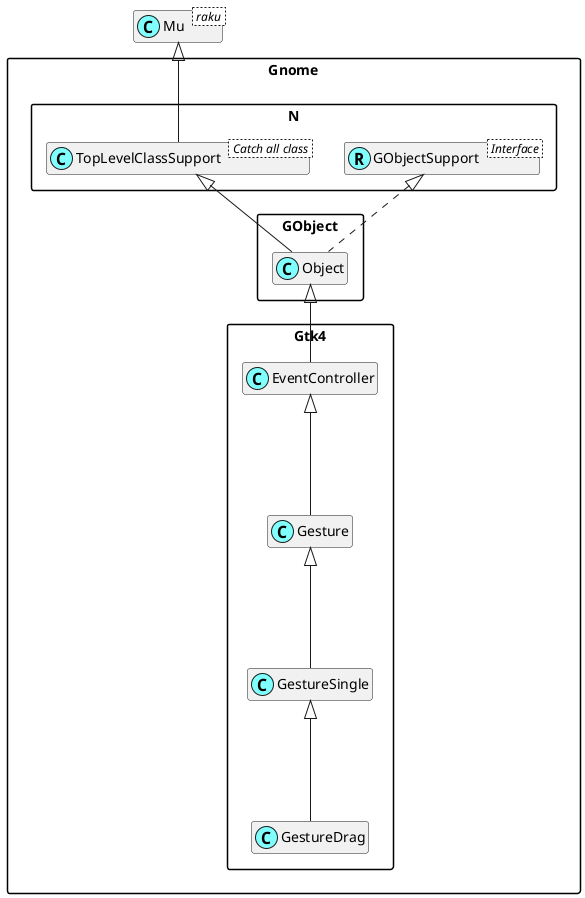

Uml Diagram§

UNKNOWN image§

Class initialization§

new§

:native-object§

Create an object using a native object from an object of the same type found elsewhere. See also Gnome::N::TopLevelSupportClass.

multi method new ( N-Object() :$native-object! )

new-gesturedrag§

Returns a newly created Gnome::Gtk4::Gesture that recognizes drags.

method new-gesturedrag ( --> Gnome::Gtk4::GestureDrag )

Methods§

get-offset§

Gets the offset from the start point.

If the $gesture is active, this function returns True and fills in $x and $y with the coordinates of the current point, as an offset to the starting drag point.

method get-offset ( Num() $x, Num() $y --> Bool )

• $x; (transfer ownership: full) X offset for the current point.
• $y; (transfer ownership: full) Y offset for the current point.

Return value; True if the gesture is active.

get-start-point§

Gets the point where the drag started.

If the $gesture is active, this function returns True and fills in $x and $y with the drag start coordinates, in widget-relative coordinates.

method get-start-point ( Num() $x, Num() $y --> Bool )

• $x; (transfer ownership: full) X coordinate for the drag start point.
• $y; (transfer ownership: full) Y coordinate for the drag start point.

Return value; True if the gesture is active.

Signals§

drag-begin§

Emitted whenever dragging starts.

method handler (
  gdouble $start-x,
  gdouble $start-y,
  Int :$_handle_id,
  N-GObject :$_native-object,
  Gnome::Gtk4::GestureDrag :$_widget,
  *%user-options
)

• $start-x; X coordinate, relative to the widget allocation.
• $start-y; Y coordinate, relative to the widget allocation.
• $_handle_id; The registered event handler id.
• $_native-object; The native object provided by the Raku object which registered this event. This is a native Gnome::Gtk4::GestureDrag object.
• %user-options; A list of named arguments provided by .register-signal() in class Object.

drag-end§

Emitted whenever the dragging is finished.

method handler (
  gdouble $offset-x,
  gdouble $offset-y,
  Int :$_handle_id,
  N-GObject :$_native-object,
  Gnome::Gtk4::GestureDrag :$_widget,
  *%user-options
)

• $offset-x; X offset, relative to the start point.
• $offset-y; Y offset, relative to the start point.
• $_handle_id; The registered event handler id.
• $_native-object; The native object provided by the Raku object which registered this event. This is a native Gnome::Gtk4::GestureDrag object.
• %user-options; A list of named arguments provided by .register-signal() in class Object.

drag-update§

Emitted whenever the dragging point moves.

method handler (
  gdouble $offset-x,
  gdouble $offset-y,
  Int :$_handle_id,
  N-GObject :$_native-object,
  Gnome::Gtk4::GestureDrag :$_widget,
  *%user-options
)

• $offset-x; X offset, relative to the start point.
• $offset-y; Y offset, relative to the start point.
• $_handle_id; The registered event handler id.
• $_native-object; The native object provided by the Raku object which registered this event. This is a native Gnome::Gtk4::GestureDrag object.
• %user-options; A list of named arguments provided by .register-signal() in class Object.
