Gnome::Gtk4::GesturePan

Gnome::Gtk4::GesturePan

Description§

Gnome::Gtk4::GesturePan is a Gnome::Gtk4::Gesture for pan gestures.

These are drags that are locked to happen along one axis. The axis that a Gnome::Gtk4::GesturePan handles is defined at construct time, and can be changed through .set-orientation().

When the gesture starts to be recognized, Gnome::Gtk4::GesturePan will attempt to determine as early as possible whether the sequence is moving in the expected direction, and denying the sequence if this does not happen.

Once a panning gesture along the expected axis is recognized, the pan signal will be emitted as input events are received, containing the offset in the given axis.

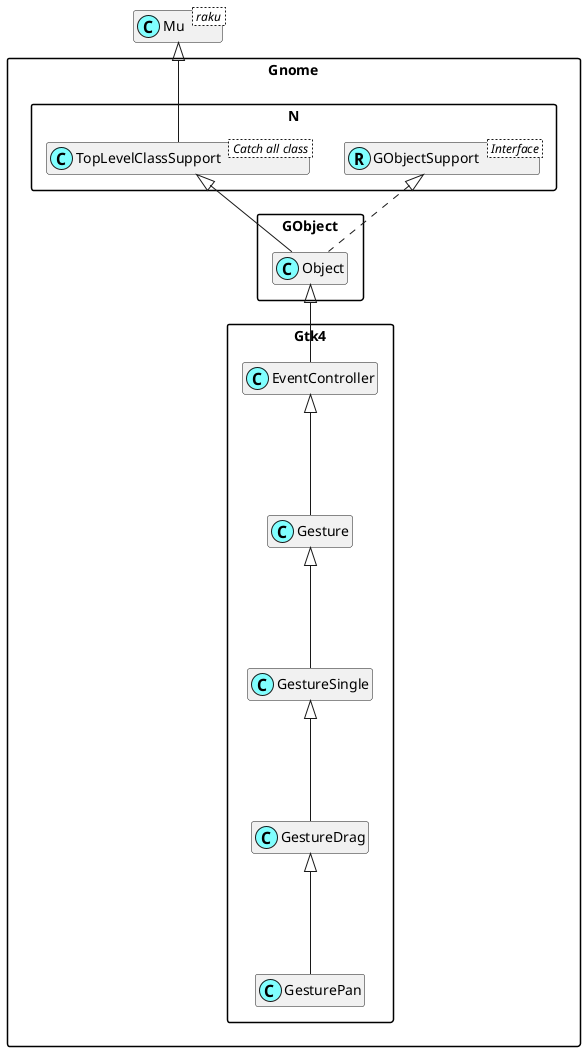

Uml Diagram§

Class initialization§

new§

:native-object§

Create an object using a native object from an object of the same type found elsewhere. See also Gnome::N::TopLevelSupportClass.

multi method new ( N-Object() :$native-object! )
Code

new-gesturepan§

Returns a newly created Gnome::Gtk4::Gesture that recognizes pan gestures.

method new-gesturepan ( GtkOrientation $orientation --> Gnome::Gtk4::GesturePan )
Code
  • $orientation; expected orientation.

Methods§

get-orientation§

Returns the orientation of the pan gestures that this $gesture expects.

method get-orientation (--> GtkOrientation )
Code

Return value; the expected orientation for pan gestures.

set-orientation§

Sets the orientation to be expected on pan gestures.

method set-orientation ( GtkOrientation $orientation )
Code
  • $orientation; expected orientation.

Signals§

pan§

Emitted once a panning gesture along the expected axis is detected.

method handler (
   $direction,
  gdouble $offset,
  Int :$_handle_id,
  N-Object :$_native-object,
  *%user-options
)
Code
  • $direction; current direction of the pan gesture.
  • $offset; Offset along the gesture orientation.
  • $_handle_id; The registered event handler id.
  • $_native-object; The native object provided by the Raku object which registered this event. This is a native Gnome::Gtk4::GesturePan object.
  • %user-options; A list of named arguments provided by .register-signal() in class Object.
